AY1-1623D Series 1550nm high-power fiber amplifier adopts two-stage amplification, the first stage adopts low-noise EDFA, the second stage adopts high-power EYDFA, the total output optical power can reach 37dBm. It can replace several or dozens of EDFA, which can greatly reduce the cost of network building and maintenance and reduce the space of head-end . Each output port is built in with CWDM to multiplex CATV signal and OLT PON Data flow. The device will play an increasingly important role in the process of continuous extension and expansion of optical fiber network. It provides a high stability but low cost solution for the triple-play and large area coverage of FTTH.
FEATURES
lIt adopts the top brand pump laser and double cladding active fiber.
lEach output port is built in with CWDM
lCompatible with any FTTx PON：EPON、GPON、10GPON.
lPerfect APC, ACC and ATC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm).
lIt has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.
lOutput adjustable, Adjustment range : 0~-4dBm.
lRF test in the front panel(optional).
lThe switching time of optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.

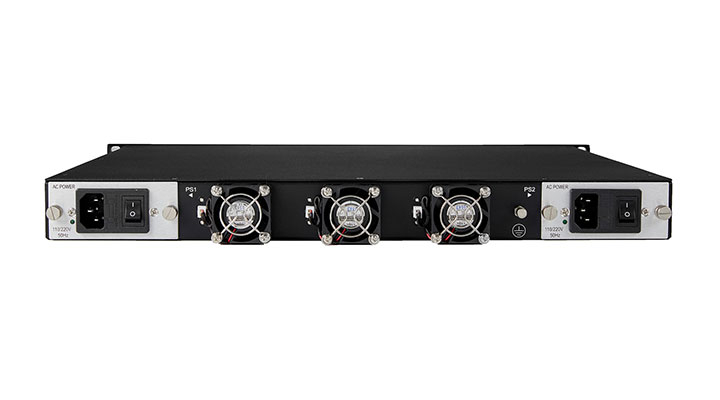

lBuilt- in dual power supply, automatically switched and hot plug supported

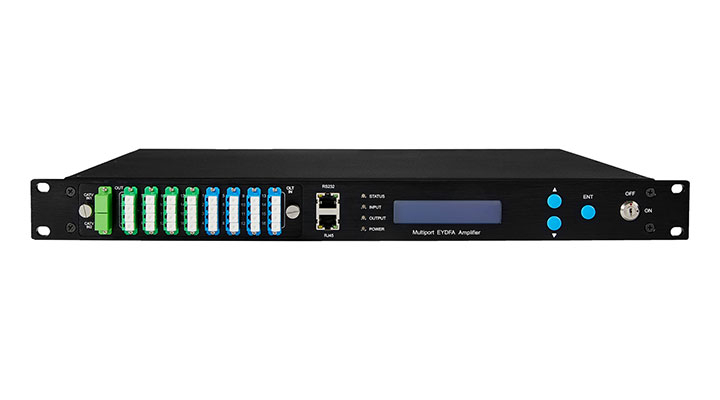

lThe operating parameters of the whole machine are controlled by microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.
lStandard RJ45 interface is provided, supporting SNMP and WEB remote network management.
