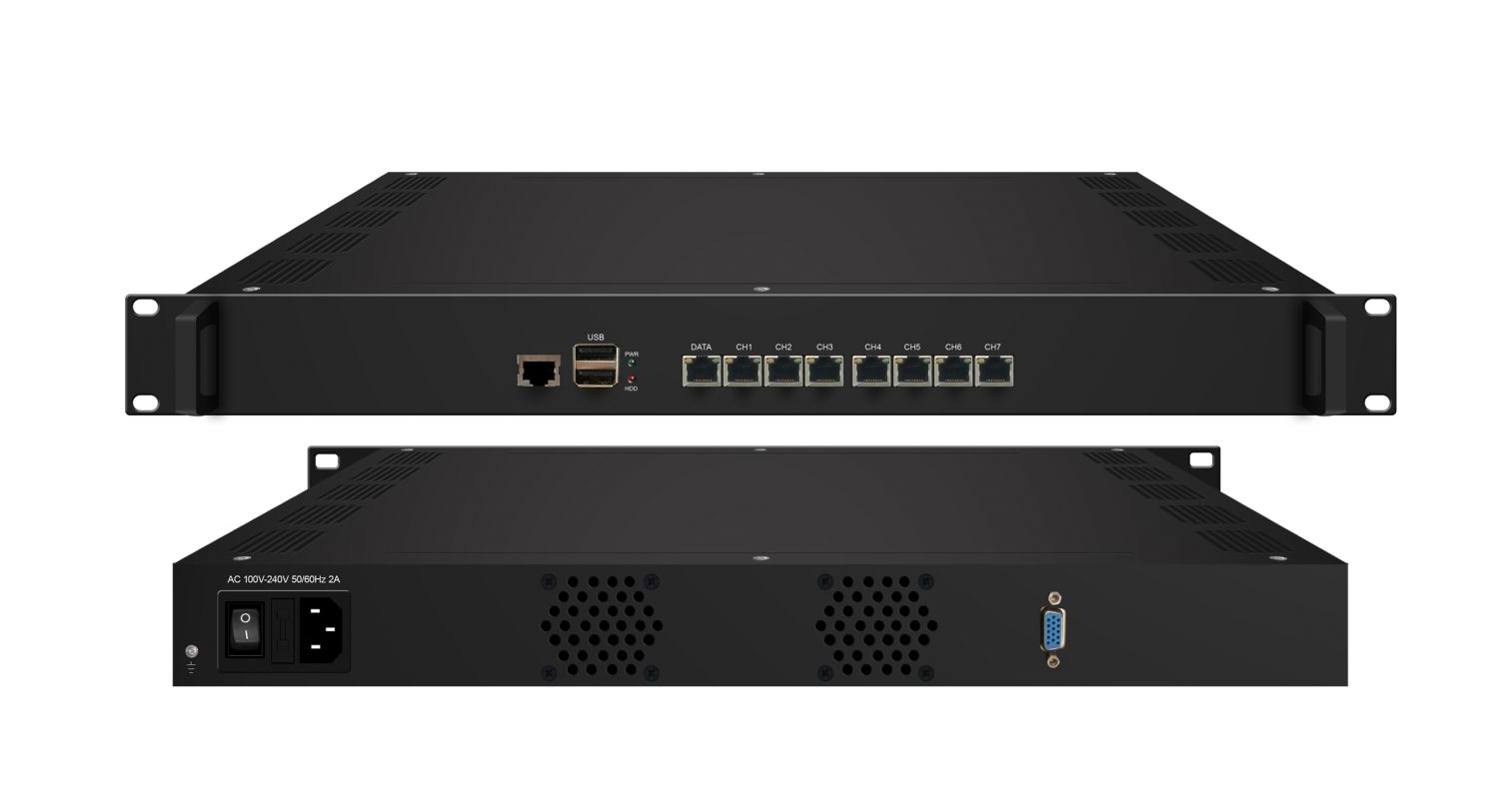

IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
FEATURES
l8 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS. IP out over HTTP, HLS and RTMP (Unicast)
lSupport TS files uploading through Web management
lSupport IP anti- jitter function
lSupport adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Wolck IPTV APK)
lSupport downloading Wolck IPTV APK directly from this device
lSupport about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
lSupport program playing with APK downloaded android STB and TV, maximum 150 terminals
lControl via web-based NMS management through DATA port
