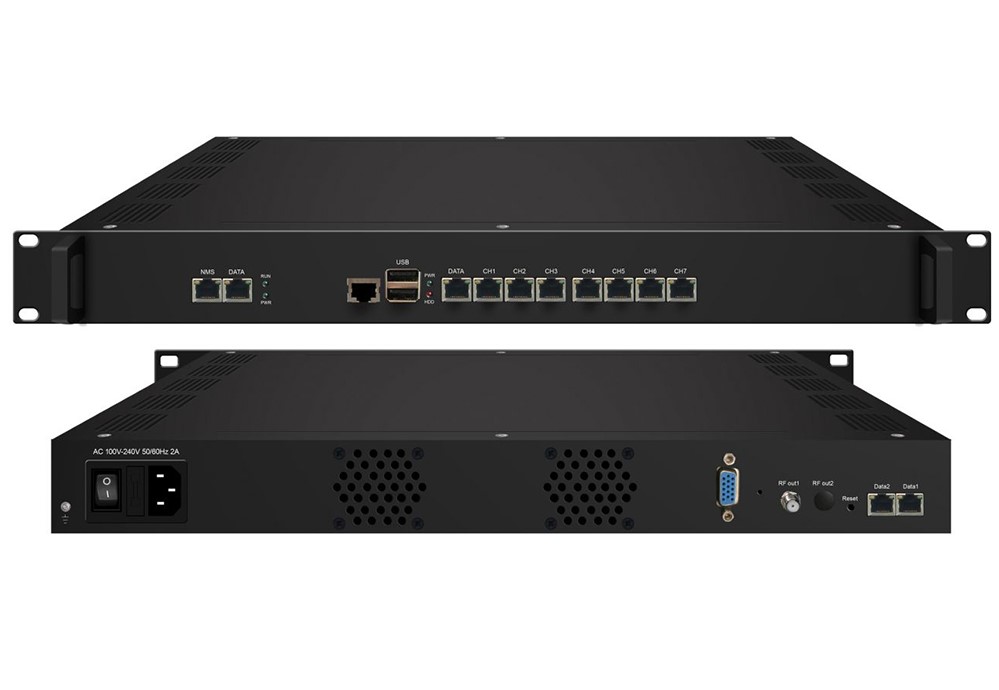

IPTV modulator is a high integration device which is combined with two independent modules. One is IPTV gateway module which is used for the protocol conversion scenarios and streaming media distribution scenarios and it can convert the network IP stream over HTTP, UDP, RTP, RTSP, HLS and TS file into HTTP, UDP, HLS and RTMP protocol.
The other is modulator module which supports IP in and IP out and DVB-C/T/ISDBT/ATSC RF out, and it can receive gateway source directly. So WK-3508C achieves IP (HTTP, UDP, RTP, RTSP and HLS) in to RF out in one box.
In conclusion, its high performance makes it widely used in CATV digital head-end, business application, IPTV/OTT system, etc. and it provides various solutions for operators to re-distribute programs.
FEATURES
l1 IPTV gateway module +1 IP modulator module, and they can work independently
lIP in (HTTP, UDP, RTP, RTSP and HLS) to RF out in one box
lGateway Module:
l8 Data ports:
lFirst Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
lData CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
lIP out over HTTP, HLS and RTMP (Unicast)
lTransmitting IP to modulator module through Data port
lSupport adding scrolling caption, welcome words, boot picture and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed IPTV APK)
lSupport downloading IPTV APK directly from this module
lModulator Module:
lIP input over UDP/RTP through Data/Data 1/2 port
lIP output over UDP/RTP/RTSP through Data 1/2 port
lSupport 16 DVB-C/8 DVB-T/6 ISDBT/8 ATSC RF out
lReceiving IP from gateway module directly through Data port
lSupport IP anti- jitter function
lControl the 2 modules separately via web-based NMS management
lSupport TS files uploading through Web management
