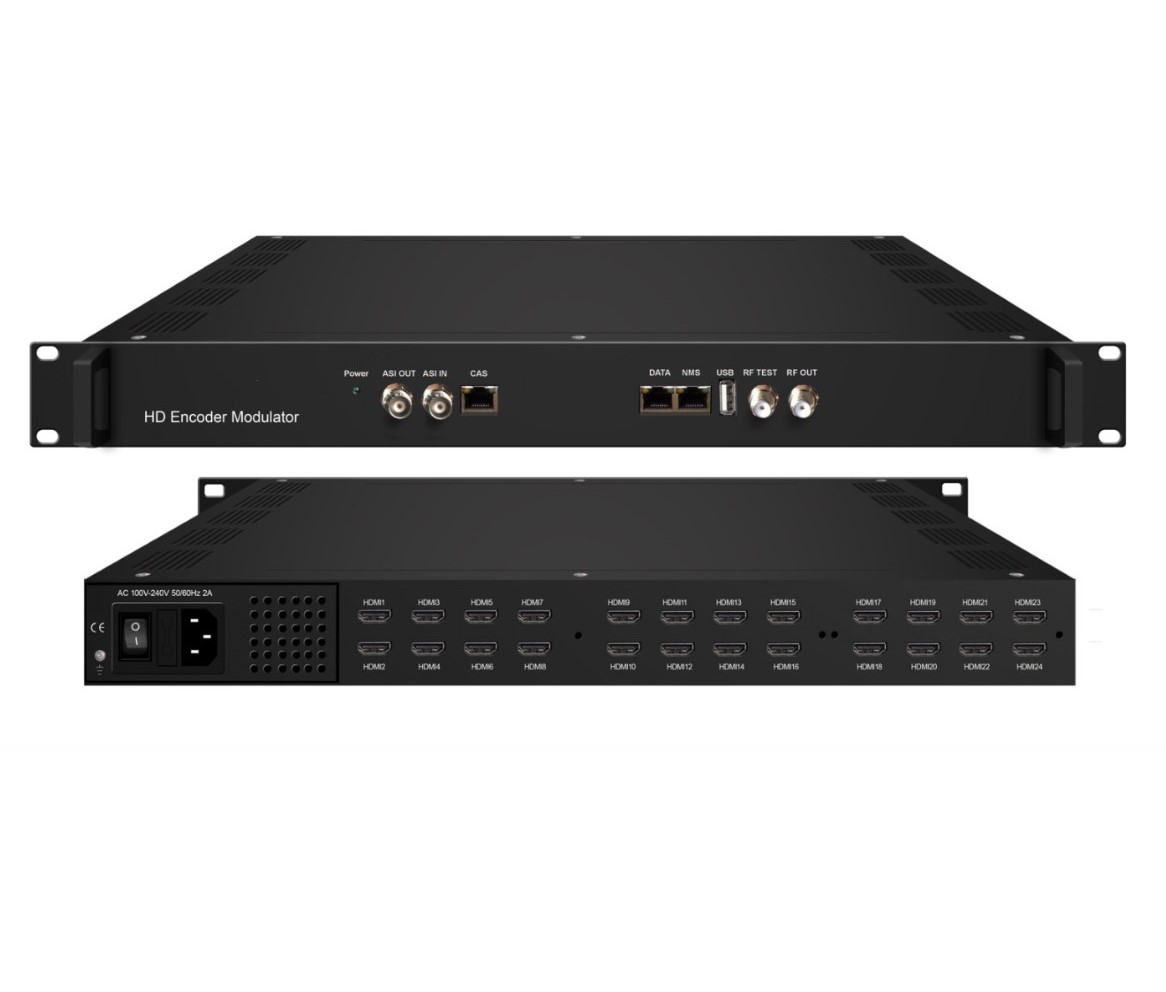

It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers.
This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
FEATURES
l1 IPTV gateway module +1 IP modulator module, and they can work independently
l8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
l1 ASI input for re-mux
l1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in WK-3536S and play back the content in an easy way; file system FAT 32. )
l128 IP input over UDP and RTP via GE port
lEach carrier out channel process maximum 32 IP from the GE port(UDP&RTP protocol)
lMPEG1 Layer II, LC-AAC and HE-AAC Audio encoding, AC3 Pass Through and audio gain adjustment
lSupport 12 groups multiplexing/DVB-C modulating
lSupport 8 groups multiplexing/DVB-T/ATSC modulating---Optional
lSupport 6 (or 16) groups multiplexing/ISDB-T modulating---Optional
lSupport 1 ASI out as mirror of one of RF output carriers---Optional
lSupport 12 MPTS IP output over UDP, RTP/RTSP –DVB-C RF out
lSupport 8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
lSupport 6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RF out
lSupport LOGO, Caption and QR code insertion(Language Supported: Chinese, English, Russian, Arabic, etc for more languages please consult us…)
lSupport PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
lControl via web management, and easy updates via web
