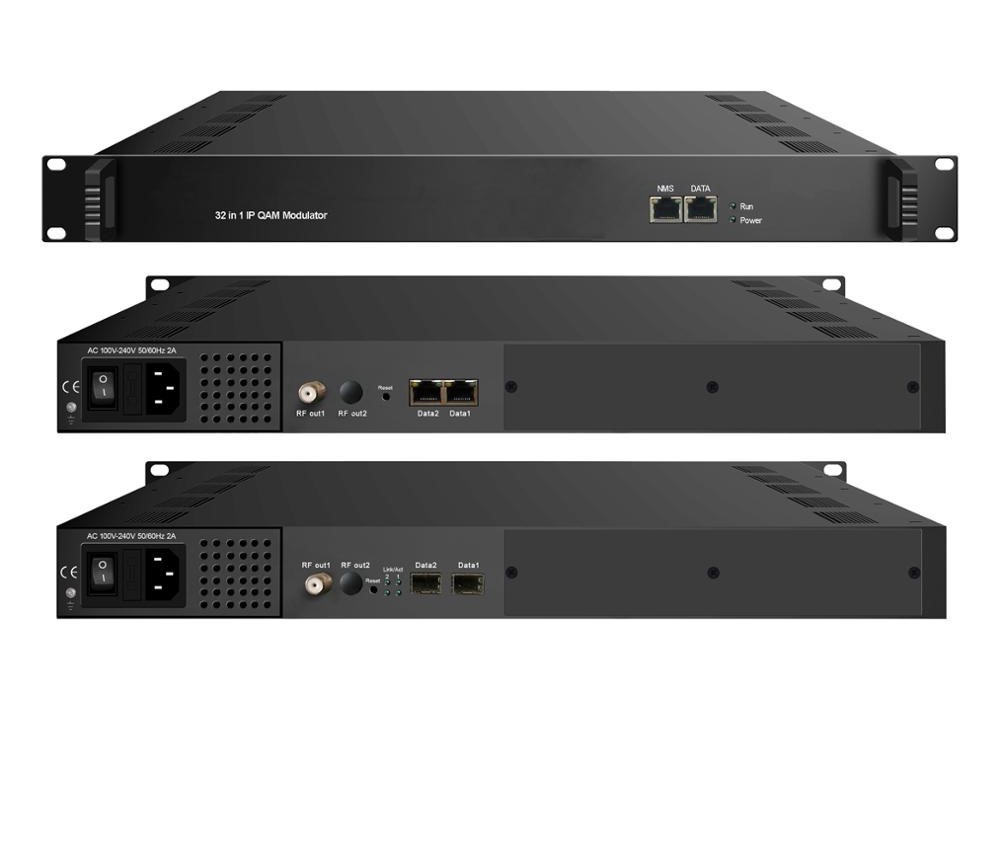

IP QAM modulator is Mux-scrambling-modulating all-in-one device. It has 32 multiplexing channels, 32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers.
FEATURES
2 GE input, Data1 and Data2 (SFP interface optional)
Supports up to 1024 IP input through GE1 & GE2 over UDP/RTP
Max 840Mbps for each GE input
Supports accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
Supports up to 256 PID remapping per channel
Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
Support 32 multiplexed or scrambled IP out over UDP/RTP/RTSP
32 non-adjacent QAM carriers output with 2 RF ports, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
Supports RS (204,188) encoding
Support Web-based Network management
