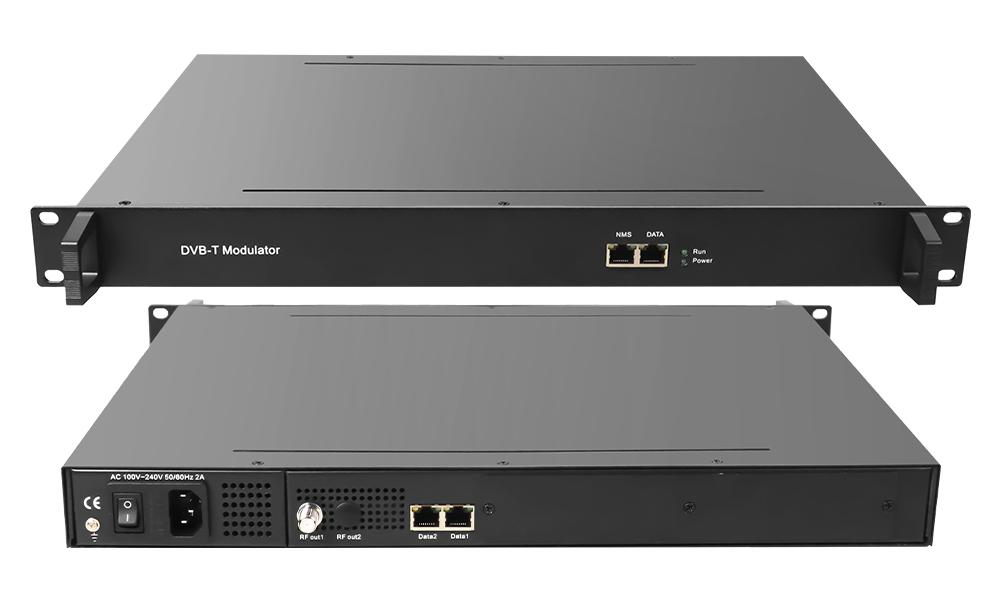

8 in 1 DVB-T modulator has 8 multiplexing channels and 8 DVB-T modulating channels, and supports maximum 256 IP input through the GE port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation DTV broadcasting system.
FEATURES
l3 GE ports (max 256 IP in):
lData1 & Data2 bi-directional ports, max 256 IP in, 8 IP out
lData port (located on front panel), max 128 IP in
lMax 840Mbps for each input
lSupports accurate PCR adjusting
lSupports PID remapping and PSI/SI editing
lSupports up to 180 PIDs remapping per channel
lSupport 8 multiplexed TS over UDP/RTP/RTSP output
l8 DVB-T non-adjacent carriers output, compliant to ETSI EN300 744 standard
lSupports RS (204,188) encoding
lSupport Web-based Network management
