OVERVIEW

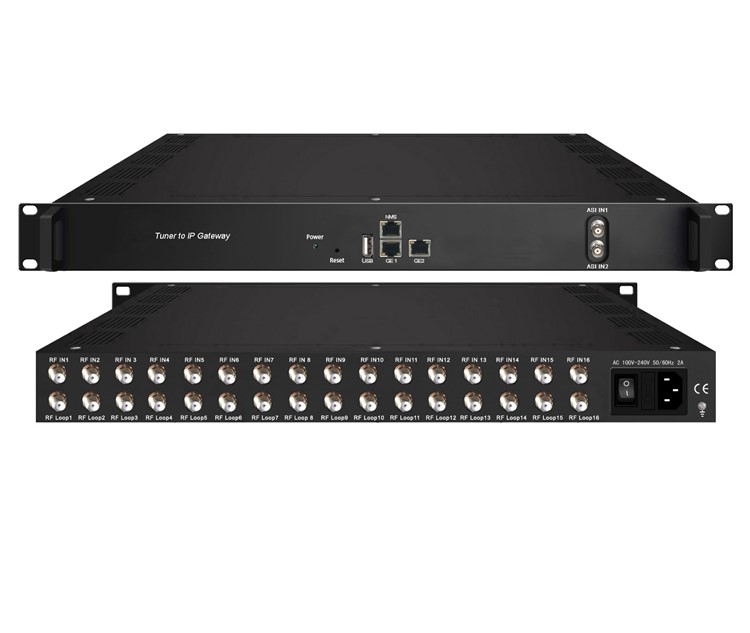

Tuner to IP Gateway is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner input to descramble your tuner input programs.
FEATURES
lSupport 16 FTA DVB- S/S2/S2X (DVB-C/T/(T)/ISDB-T/ATSC optional )input, 2 ASI input
lSupport BISS descrambling
lSupport DisEqc function
l16 MPTS or 512 SPTS output (MPTS and SPTS output switchable)
l2 GE mirrored output (IP address and port number of GE1 and GE2 are different), up to 850Mbps---SPTS
l2 independent GE output port, GE1 + GE2---MPTS
lSupport PID filtering, re-mapping (Only for SPTS output)
lSupport “Null PKT Filter” function (Only for MPTS output)
lSupport Web operation
