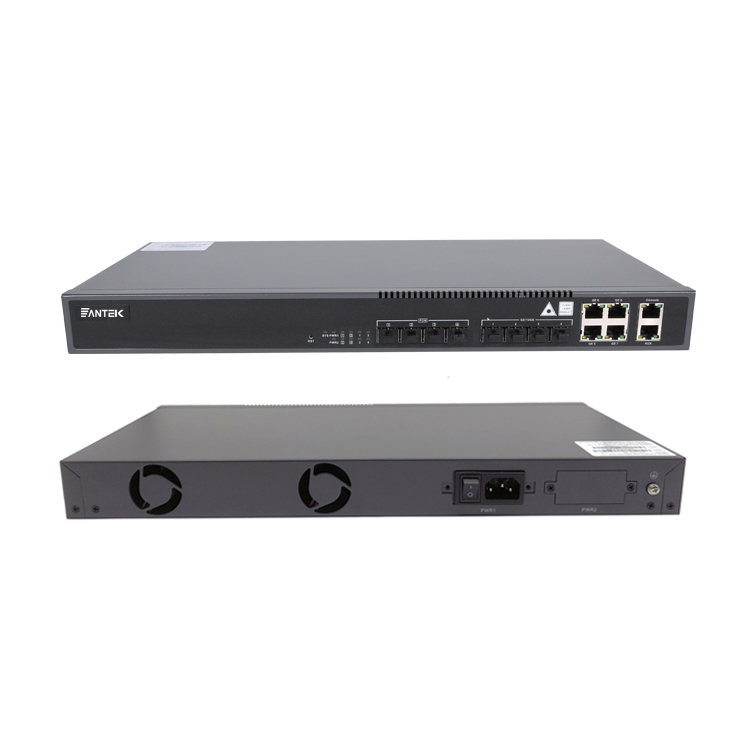

AL8500-04EP is a small capacity EPON OLT equipment with card plugging design of “AN6X” series. It provides 4 EPON optical interfaces and connects 256 remote ONUs at most.. It is convenient and flexile for extending and upgrading service with rack design.
AL8500-04EP can be applied to access solutions of FTTC/FTTB/FTTP/FTTH.
AL8500-04EP works with the remote ONU of “AN6X” series and it can build the PON network through the connection of the fiber and the ODN (optical distribution network). System can improve resource utilization of carrier basic network. And it also can provide broadband data service, traditional voice/VoIP service,CATV/IPTV service.
FEATURES
lAggregation layer switch. Layer wire-speed forwarding, support for rich layer protocol.
l4 uplink ports, port aggregation through the largest available 4G uplink bandwidth.
lComplete network management functions
lSupport flexible DBA, up and down traffic speed.
lSupport IP ToS, IEEE802.1Q
lPort-based traffic control, traffic shaping.
lSupport ONU automatic identification, auto-discovery, and auto-registration.
lSingle link to support the automatic loop-back test function.
lVLAN powerful features, including VLAN Stacking, Trunk, Translation.
lFlexible and controllable multicast support, support IGMP snooping.
lSupport ACL /QoS
